產品介紹

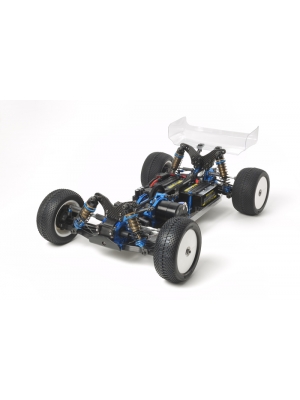

TAMIYA 田宮 TFR 503 限定版 #42275




商品貨號: 42275
商品品牌:
市場價格: $19980元
本店售價: $17990元
備  註:



Product Specifications











Type Detail
Scale 1/10
Construction type assembly kit
Terrain use off-road
Drive-train 4WD
Drive type belt
Drive line universal
Differential type sealed oil-filled gear
Suspension fully independent double wishbone
Steering mechanism bell-crank
Shock damper oil-filled damper
Shock damper material aluminum
Tire type not included
Tire tread n/a
Body material Polycarbonate
Chassis material carbon fiber plate
Electronic Speed Control (ESC) not included
ESC model n/a
LED Light buckets no
LED lights no
Motor not included
Bearings shielded ball bearing
Adjustable camber yes
Adjustable toe angles front and rear
Adjustable ground clearance yes
Adjustable gear ratio yes
Adjustable wheelbase fixed
Adjustable track width fixed
Adjustable shock angle yes
Special feature 1 Features a long-wheelbase lower deck. It is 7.5mm greater in length compared to the 511 for improved handling on uneven surfaces.
Special feature 2 The motor position has been shifted 10.5mm toward the front of the chassis to improve controllability, while the motor mount is 5mm closer to the centerline, which helps to reduce chassis roll.
Special feature 3 The ability to handle higher-power motors stems from the NEW single-piece aluminum center pulley.
Special feature 4 A weight reduction of up to 20% is achieved by using lightweight aluminum upper and lower bulkheads.
Special feature 5 The aluminum suspension plate is angled at 14 degrees, which is nearly double that of the TRF511. Damper attachment positions have been raised 2mm on the front stay, for optimized front damper rebound.
Special feature 6 Universal shafts are secured with ring connectors.

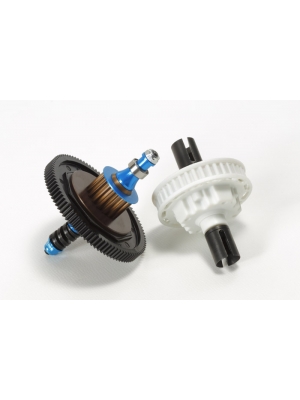

Special feature 7 Includes 39T oil-filled gear differentials, big bore aeration dampers and a clear polycarbonate body.
Requires A 2-channel radio gear & electronic speed control
Requires B 7.2 battery & charger
Requires C polycarbonate paint
Requires D tires







*馬達、胎框、車殼、電子設備 須另購
