產品介紹
OS GGT15 二行程 飛機用 汽油引擎 免CDI 點火裝置




商品貨號: GGT15
商品品牌: O.S
市場價格: $10400元
本店售價: $9800元
備  註:

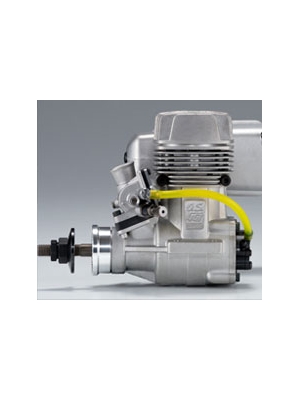

GGT15 Gasoline Engine
w/Muffler

The convenience of glow in a gasoline engine.

Glow plug ignition makes the GGT15 a unique 15cc gasoline engine — its performance is the icing on the cake! One of the most important benefits of using a glow driver is that it reduces the engine's overall weight by eliminating the ignition module. Additional features found on this exceptional engine include specialized shell-type roller bearings and a 61H carburetor with PD-08 pump system. It’s the ideal power plant for larger, .61-.91 class models.

  • Uses a glow plug instead of a spark plug for ignition
  • Simple starts using a glow driver – no ignition module required
  • Uses a typical 50:1 fuel:oil mixture
  • Features a 61H carburetor with PD-08 pump system
  • Equipped with special shell-type roller bearings
  • A great power plant for 2-stroke .60 class and 4-stroke .91 class models



Stock Number: OSMG1513
Displacement: 0.912 cu in (14.95 cc)
Bore: 1.091 in (27.7 mm)
Stroke: 0.976 in (24.8 mm)
Practical RPM Range: 2,000-11,000
Output: 2.35 ps/2.32 hp @ 15,000 rpm
Weight: Engine: 21.5 oz (610 g) / Muffler: 6.28 oz (178 g)
Includes: G5 glow plug, E-4040 muffler
Suggested Props: 12 x 10, 13 x 10, 13 x 11, 14 x 10, 15 x 8, 15 x 10
Recommended props: 16 x 10, 17 x 8, 17 x 10, 18 x 6W, 18 x 8
Recommended Accessory: E-4051 muffler (OSMG2878) for scale models



Stock Number Mfr Number Product Description Optional
OSMG9084 22081313 O.S. Throttle Lever Screw #10212A
OSMG3836 23081706 O.S. Carburetor Screw #103A2A
OSMG8852 26381501 O.S. Set Screw #2D/#4BK-#5B
OSMG7704 26606008 O.S. Piston Pin 60-61FSR/SX
OSMG6925 26625210 O.S. Muffler Screws #744B
OSMG8172 26711305 O.S. Ratchet Spring #7H/#7D/#2K
OSMG3060 26731002 O.S. Front Bearing 40-240
OSMG7128 27381940 O.S. Needle Holder #7H/#7M/#7L
OSMG6860 27425011 O.S. Silencer E-4040 GT15/75AX
OSMG6934 27425300 O.S. Muffler Assembly Screw 75AX
OSMG2878 27426010 O.S. E-4051 Muffler GT15HZ
OSMG9059 27881400 O.S. Throttle Lever 120Surpass
OSMG7497 28117010 O.S. Piston Pin Retainer GT15HZ
OSMG4417 28151300 O.S. Crankcase Plug GT15HZ
OSMG4743 28152100 O.S. Crank Pin Stop Screw GT22
OSMG7838 28153400 O.S. Piston Ring GT15HZ
OSMG4031 28155000 O.S. Connecting Rod GT15HZ
OSMG4727 28162000 O.S. Crankshaft GT15
OSMG7604 28163200 O.S. Piston GT15
OSMG4119 28167000 O.S. Cover Plate GT15
OSMG6213 28169460 O.S. Thermo Insulator GT15
OSMG2543 28181010 O.S. Carburetor 61H GT15
OSMG3780 28181210 O.S. Carburetor Rotor 61H GT15
OSMG6735 28181600 O.S. Mixture Control Valve 61H GT15
OSMG7250 28181900 O.S. Needle Valve Assembly 61H GT15
OSMG7390 28181910 O.S. O-Ring S3-FKM 61H GT15
OSMG7391 28181920 O.S. O-Ring P3-FKM 61H GT15
OSMG7060 28181970 O.S. Needle 61H GT15
OSMG9360 29008219 O.S. Woodruff Key 61-91
OSMG3108 29030001 O.S. Rear Bearing 61-300
OSMG6260 29061406 O.S. Cylinder Head Gasket .2mm 91HZ
OSMG6805 29067130 O.S. Pan Head Screw 3x18mm (10)
OSMG7375 29122540 O.S. O-Ring Rubber Gasket 120AX
OSMG5370 29503100 O.S. Cylinder Liner 91FX
OSMG5566 29508000 O.S. Drive Washer 91FX
OSMG6175 29514000 O.S. Gasket Set 91FX
OSMG4423 4A201000 O.S. Crankcase GGT15
OSMG5256 4A204000 O.S. Cylinder Head GGT15
OSMG6988 45571110 O.S. Nipple Large Universal L3.5
OSMG8492 45581820 O.S. Rotor Guide Screw F90-300
OSMG6687 45910100 O.S. Locknut Set FS-91 Surpass
OSMG6684 45910200 O.S. Lock Cone 40P/60GP
OSMG2914 45910300 O.S. Locknut Set FS-120 Surpass
OSMG9136 46120000 O.S. Thrust Washer FT-120/160
OSMG9402 55500003 O.S. Lock Washer 4mm

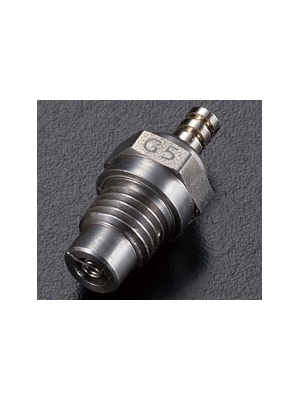

OSMG2714 71655001 O.S. Glow Gas Plug G5 GGT15
OSMG5872 72403050 O.S. Super Can Filter Large Optional
OSMG5871 72403051 O.S. Super Can Filter Small Optional
OSMG2200 72508100 O.S. Pump Unit PD-08 FS-200S-P
OSMG8793 79871140 O.S. Hex Head Screw M3 91SZ-H (10) Optional
OSMG8791 79871150 O.S. Cylinder Head Screws 120AX (10)





行程体積 Displacement 14.95cc 0.912cu.in.
ボア Bore 27.7mm 1.091in.
ストローク Stroke 24.8mm 0.976in.
実用回転数 Practical r.p.m.Range 2,000-11,000r.p.m.
出力 Output 2.35ps/15,000r.p.m. 2.32hp/15,000r.p.m.
重量 Weight 610g(エンジン) 21.52oz.(Engine)
    178g(サイレンサー) 6.28oz.(Silencer)
推奨プロペラ 推奨プロペラの回転数データ・・(参考値)
12x10
10,600 rpm
13x10
9,600 rpm
13x11
8,900 rpm
14x10
8,300 rpm
15x8
8,150 rpm
15x10
7,900 rpm
